Product Details:
|
| Material: | Carbon Steel/ss304/ss316/Copper/Aluminum | Surface Treatment: | Zinc Plated /Galvanized/HDG |
|---|---|---|---|
| Usage: | Pipe Clamp | Thickness: | 1.5-3.0MM |
| Service: | OEM ODM | Sample: | Available |
| Certification: | ISO9001-2015 | Package: | Carton Box |

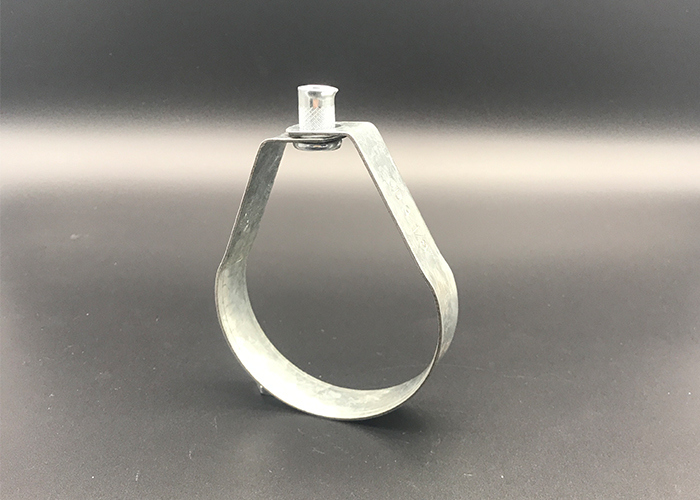

Custom Size 2-1/2'' Pregalvanized Loop Hanger
Products: Loop Hanger
A loop hanger is a pipe accessory that loops around a pipe in order to support it. Loop hangers are similar to clevis hangers, split ring hangers, and clamp hangers, which are all examples of pipe hangers, but there are qualities that help to set loop hangers apart from the rest.
The design of loop hanger is simple but effective, looping around a pipe and connecting to a beam or ceiling for support. Loop hangers have keyed insert nuts to guarantee the loop hanger and insert nuts stay together. This type of pipe support is highly recommended for the suspension of non-insulated, stationary pipe lines.
Features:
Flared edges help to protect plastic pipe
An integral fold-over washer (pipe sizes 1/2" to 8")
Suitable for Both Indoor and Outdoor Applications.
Pipe Size Range: 2/1''to8''
Material: Galvanized Steel
Applications:
Loop hangers are used in various industries for clamping pipes or lifting the pipes.
Certification:
Standard: DIN,ANSI,JIS,ASTM, Non-Standard
Material: stainless steel, carbon steel, copper
Finish: electric galvanized, hot-dip galvanized, powder coated
Size: 1/2" - 8"
Quality control: rigid quality inspection throughout the production
Package: standard or customized
Lead time: 15-30 days, depend on the order quantity
| Part No. | Pipe Size(Inch) | Nut Size | ØD(mm) | Finish |
| KK-LH015 | 1/2” | 3/8 | 21.3 | EG/HDG/SS304/SS316 |
| KK-LH020 | 3/4” | 3/8 | 27.2 | EG/HDG/SS304/SS316 |
| KK-LH025 | 1” | 3/8 | 34.0 | EG/HDG/SS304/SS316 |
| KK-LH032 | 1-1/4” | 3/8 | 42.7 | EG/HDG/SS304/SS316 |
| KK-LH040 | 1-1/2” | 3/8 | 48.6 | EG/HDG/SS304/SS316 |
| KK-LH050 | 2” | 3/8 | 60.5 | EG/HDG/SS304/SS316 |
| KK-LH065 | 2-1/2” | 3/8 | 73.0 | EG/HDG/SS304/SS316 |
| KK-LH080 | 3” | 3/8 | 89.1 | EG/HDG/SS304/SS316 |
| KK-LH090 | 3-1/2” | 3/8 | 101.6 | EG/HDG/SS304/SS316 |
| KK-LH100 | 4” | 3/8 | 114.3 | EG/HDG/SS304/SS316 |
| KK-LH125 | 5” | 1/2 | 141.3 | EG/HDG/SS304/SS316 |
| KK-LH150 | 6” | 1/2 | 168.3 | EG/HDG/SS304/SS316 |
| KK-LH200 | 8” | 1/2 | 219.1 | EG/HDG/SS304/SS316 |
Product Show:
Package:
Shanghai KoKa Industrial Co.,Ltd is a professional cable management systems (CMS) & Strut Framing systems and HVAC systems solutions provider,manufacturer .
Based on over 15 years of engineering experience to the subways, airports, shopping malls, food, beverage, petrochemical ,and pharmaceutical industries, the KOKA production of stainless steel products has become a respected and specified brand to some of the world's most recognised organisations.
KOKA products are known throughout the industry as being hygienic, high quality and to offer exceptional value.
KOKA offer an extensive range of products ex-stock and can therefore process your orders with a short lead time, with the majority of parts available on a next day delivery.
KOKA specialises in manufacturing the following products in SS304 , SS316 ,carbon steel.
KOKA to provide personalized demand and global sourcing solutions for global customers,always adhere to the product quality first,Continuous development and optimization design, with user-friendly, simple installation to satisfied customer needs, and strive to reduce customer costs, to adapt to the global competition, With global customers to cope with the complex economic environment, to achieve common value growth of the target.
FAQ:
Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example:
1: what material(carbon steel/Q235/SS304/SS316)
