Product Details:
|
| Material: | Carbon Steel/ss304/ss316/Copper/Aluminum | Surface Treatment: | Zinc Plated /Galvanized/HDG |
|---|---|---|---|
| Usage: | Pipe Clamp | MOQ: | 1000pcs |
| Service: | OEM ODM | Sample: | Available |
| Certification: | ISO9001-2015 | Package: | Carton Box |

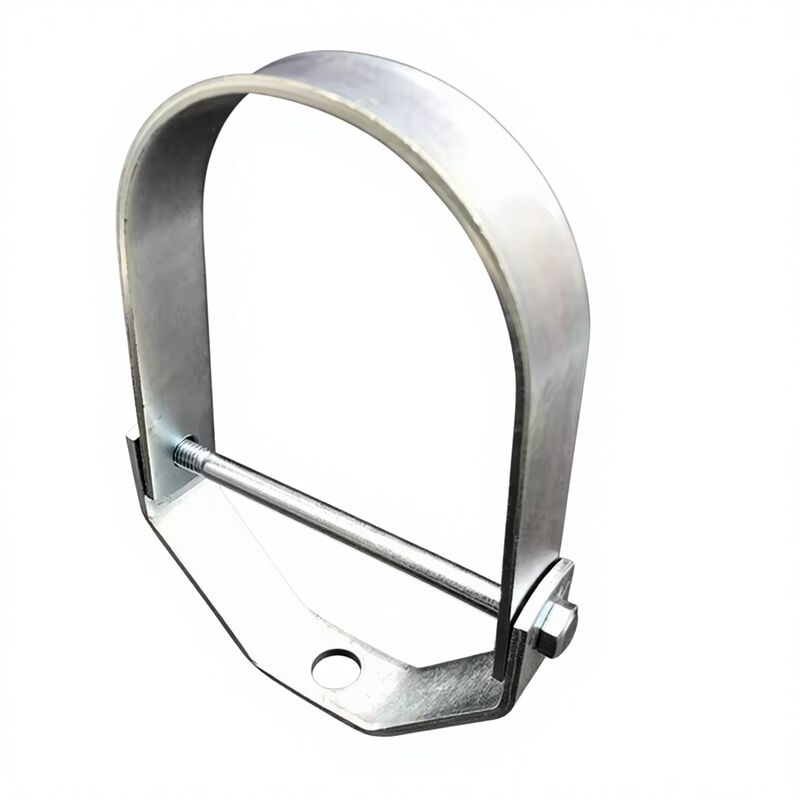

High Capacity Adjustable Hot Dip Galvanized Strut Clevis Hanger
Products: Clevis Hanger
A Clevis hanger is a pipe accessory that loops around a pipe in order to support it. Loop hangers are similar to clevis hangers, split ring hangers, and clamp hangers, which are all examples of pipe hangers, but there are qualities that help to set loop hangers apart from the rest.
The design of loop hanger is simple but effective, looping around a pipe and connecting to a beam or ceiling for support. Loop hangers have keyed insert nuts to guarantee the loop hanger and insert nuts stay together. This type of pipe support is highly recommended for the suspension of non-insulated, stationary pipe lines.
Features:
Size range: 1/2 inches thru 24 inches
Material: Carbon steel
Finish: Black or galvanized: furnished galvanized unless otherwise specified.
Max. temp: 650°F.
Feature: Designed with the yoke on outside of lower U-Strap so the yoke cannot slide toward the center of the bolt, thus bending of the bolt is minimized.
Complies with Manufactures' Standardization Society (MSS) SP-58 & SP-69 (Type 1). Complies with Federal Specifications A A-1192A (Type 1). Complies with Underwriters' Laboratories (UL) & (cUL) (062311- EX15800),
Applications:
For the suspension of non-insulated, stationary pipe lines.
Certification:
| Part No. | Pipe Size | Thickness(mm) | Ø(mm) | Finish |
| KK-CH020 | 3/4” | 2.5 | 11 | EG/HDG/SS304/SS316 |
| KK-CH025 | 1” | 2.5 | 11 | EG/HDG/SS304/SS316 |
| KK-CH032 | 1-1/4” | 2.5 | 11 | EG/HDG/SS304/SS316 |
| KK-CH040 | 1-1/2” | 2.5 | 11 | EG/HDG/SS304/SS316 |
| KK-CH050 | 2” | 2.5 | 11 | EG/HDG/SS304/SS316 |
| KK-CH065 | 2-1/2” | 3 | 14 | EG/HDG/SS304/SS316 |
| KK-CH080 | 3” | 3 | 14 | EG/HDG/SS304/SS316 |
| KK-CH090 | 3-1/2” | 4 | 14 | EG/HDG/SS304/SS316 |
| KK-CH100 | 4” | 4 | 17 | EG/HDG/SS304/SS316 |
| KK-CH125 | 5” | 4.5 | 17 | EG/HDG/SS304/SS316 |
| KK-CH150 | 6” | 4.5 | 20 | EG/HDG/SS304/SS316 |
| KK-CH200 | 8” | 4.5 | 20 | EG/HDG/SS304/SS316 |
| KK-CH250 | 10” | 6 | 23.7 | EG/HDG/SS304/SS316 |
| KK-CH300 | 12” | 6 | 23.7 | EG/HDG/SS304/SS316 |
| KK-CH350 | 14” | 6 | 27 | EG/HDG/SS304/SS316 |
| KK-CH400 | 16” | 6 | 27 | EG/HDG/SS304/SS316 |
| KK-CH450 | 18” | 6 | 32 | EG/HDG/SS304/SS316 |
| KK-CH500 | 20” | 8 | 33.2 | EG/HDG/SS304/SS316 |
| KK-CH600 | 24” | 8 | 33.2 | EG/HDG/SS304/SS316 |
Product Show:
Package:
Shanghai KoKa Industrial Co.,Ltd is a professional cable management systems (CMS) & Strut Framing systems and HVAC systems solutions provider,manufacturer .
Based on over 15 years of engineering experience to the subways, airports, shopping malls, food, beverage, petrochemical ,and pharmaceutical industries, the KOKA production of stainless steel products has become a respected and specified brand to some of the world's most recognised organisations.
KOKA products are known throughout the industry as being hygienic, high quality and to offer exceptional value.
KOKA offer an extensive range of products ex-stock and can therefore process your orders with a short lead time, with the majority of parts available on a next day delivery.
KOKA specialises in manufacturing the following products in SS304 , SS316 ,carbon steel.
KOKA to provide personalized demand and global sourcing solutions for global customers,always adhere to the product quality first,Continuous development and optimization design, with user-friendly, simple installation to satisfied customer needs, and strive to reduce customer costs, to adapt to the global competition, With global customers to cope with the complex economic environment, to achieve common value growth of the target.
FAQ:
Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example:
1: what material(carbon steel/Q235/SS304/SS316)
