Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Certification: ISO9001 2015
Model Number: KKRC015
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Sent email to us
Packaging Details: Pallet Packing,customized requirement
Delivery Time: 10-25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 999999/pcs/month

HDG Hanger Riser Pipe Clamp Sz3/8 Inch Heavy Duty Pipe Hangers Ss316 Powder Coated

Description
Material: Carbon Steel/ss304/ss316/Copper/Aluminum Surface Treatment: Zinc Plated /Galvanized/HDG
Usage: Pipe Clamp MOQ: 1000pcs
Service: OEM ODM Sample: Available
Certification: ISO9001-2015 Package: Carton Box
High Light:

HDG Hanger Riser Pipe Clamp

,

ss316 Powder Coated Riser Pipe Clamp

,

sz3/8 in heavy duty pipe hangers

HDG Powder Coated Hanger Riser Pipe Clamp



Products: Riser Clamp

A Riser clamp is a type of hardware used by mechanical building trades for pipe support in vertical runs of piping at each floor level. The devices are placed around the pipe and integral fasteners are then tightened to clamp them onto the pipe. The friction between the pipe and riser clamp transfers the weight of the pipe through the riser clamp to the building structure. Risers are generally located at floor penetrations, particularly for continuous floor slabs such as concrete. They may also be located at some other interval as dictated by local building codes or at intermediate intervals to support plumbing which has been altered or repaired. Heavier piping types such as cast iron require more frequent support. Ordinarily, riser clamps are made of carbon steel and individually sized to fit certain pipe sizes. "Riser" refers to vertical runs of pipes, electrical conduit and tubes.



Features:

Riser Clamp or guides provide attachment support when a cable or pipeline is required to run vertically up the side of a platform.

The location and fixing geometry of each Riser Clamp may vary considerably due to the complexity of a platform structure and the exact geometric shape can be achieved for each location.
The Riser Clamp can be installed onto the side of existing platforms or structures, with the base section being installed first, followed by the riser and retaining cap.



Applications:

The Steel Riser Clamp is designed for the support or steadying of vertical risers.It is made of carbon steel and is designed to hold tight to the pipe,transmitting the load to the structure through the ears on each end.When possible the clamp should be placed under a coupling,hub,or lugs welded to the pipe.



Certification:

Part No.
Pipe Size OD
(inch)
“B” Length
(inch)
Bolt Size
Max Load/Ibs
Finish
KKRC015
1/2”
9
3/8 x 1-1/4
220
EG/HDG/SS304/SS316
KKRC020
3/4”
9-3/8
3/8 x 1-1/4
220
EG/HDG/SS304/SS316
KKRC025
1”
9-5/8
3/8 x 1-1/4
220
EG/HDG/SS304/SS316
KKRC032
1-1/4”
10
3/8 x 1-1/4
250
EG/HDG/SS304/SS316
KKRC040
1-1/2”
10-3/8
3/8 x 1-1/4
250
EG/HDG/SS304/SS316
KKRC050
2”
10-3/4
3/8 x 1-1/4
300
EG/HDG/SS304/SS316
KKRC065
2-1/2”
11-1/4
3/8 x 1-1/2
400
EG/HDG/SS304/SS316
KKRC080
3”
11-3/4
3/8 x 1-1/2
500
EG/HDG/SS304/SS316
KKRC090
3-1/2”
13
3/8 x 1-1/2
600
EG/HDG/SS304/SS316
KKRC100
4”
13-1/2
1/2 x 1-3/4
750
EG/HDG/SS304/SS316
KKRC125
5”
14-1/2
1/2 x 1-3/4
1500
EG/HDG/SS304/SS316
KKRC150
6”
16
1/2 x 1-3/4
1600
EG/HDG/SS304/SS316
KKRC200
8”
18
5/8 x 2
2500
EG/HDG/SS304/SS316
KKRC250
10”
21-1/2
5/8 x 2
2500
EG/HDG/SS304/SS316
KKRC300
12”
23
5/8 x 1-1/2
2700
EG/HDG/SS304/SS316
KKRC350
14”
25
5/8 x 3
2700
EG/HDG/SS304/SS316
KKRC400
16”
26-1/4
3/4 x 3-1/2
2900
EG/HDG/SS304/SS316
KKRC450
18”
26-3/8
3/4 x 3-1/2
2900
EG/HDG/SS304/SS316
KKRC500
20”
30
3/4 x 3-1/2
2900
EG/HDG/SS304/SS316
KKRC600
24”
30-3/4
7/8 x 3-1/2
2900
EG/HDG/SS304/SS316
KKRC750
30”
40-3/4
7/8 x 3-1/2
2900
EG/HDG/SS304/SS316

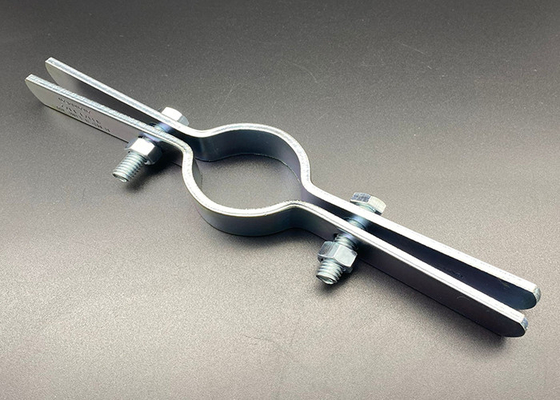

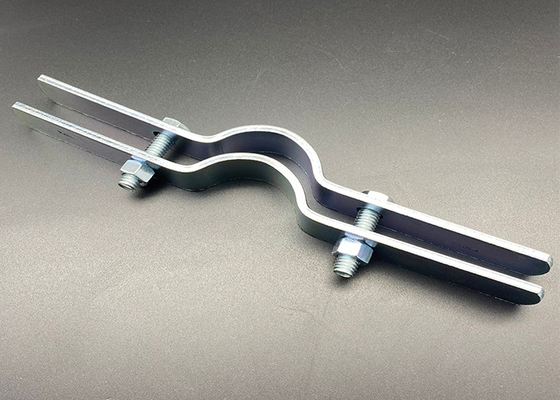

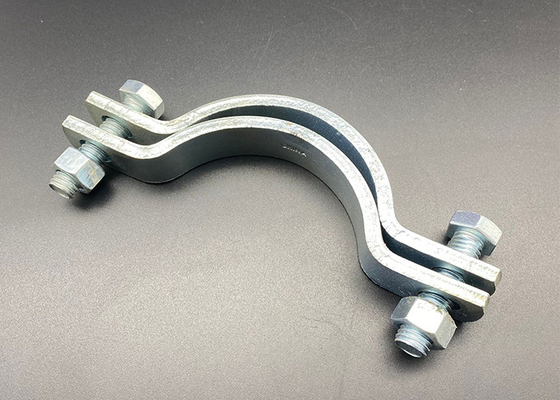

Product Show:

HDG Hanger Riser Pipe Clamp Sz3/8 Inch Heavy Duty Pipe Hangers Ss316 Powder Coated 0  HDG Hanger Riser Pipe Clamp Sz3/8 Inch Heavy Duty Pipe Hangers Ss316 Powder Coated 1



Package:

HDG Hanger Riser Pipe Clamp Sz3/8 Inch Heavy Duty Pipe Hangers Ss316 Powder Coated 2

HDG Hanger Riser Pipe Clamp Sz3/8 Inch Heavy Duty Pipe Hangers Ss316 Powder Coated 3



FAQ:

Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example:

1: what material(carbon steel/Q235/SS304/SS316)

2 : what size do you need ?
3: what surface finished( zinc plate/HDG/powder coating/copper plated)?
Q4: Do you provide free samples?
A: Yes ,you can get the free samples
Q5: What is your payment terms?
A: 30% T/T deposit,balance will be against each copy of B/L;
Q6: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 20-25days.
