Fabricated Rubber Expansion Joint Bellow 200mm Forged Steel For Pipe

Fabricated Rubber Expansion Joint Bellow 200mm Forged Steel For Pipe
Fabricated Rubber Expansion Joint Bellow 200mm Forged Steel For Pipe Fabricated Rubber Expansion Joint Bellow 200mm Forged Steel For Pipe Fabricated Rubber Expansion Joint Bellow 200mm Forged Steel For Pipe

Large Image :  Fabricated Rubber Expansion Joint Bellow 200mm Forged Steel For Pipe

Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Certification: ISO9001 2015
Model Number: RJ30-12
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: sent email
Packaging Details: Pallet Packing,customized requirement
Delivery Time: contact us
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999 pcs/month

Fabricated Rubber Expansion Joint Bellow 200mm Forged Steel For Pipe

Description
Material: Rubber Service: OEM ODM
Sample: Available Certification: ISO9001-2015
Package: Carton Box Usage: Fire Pipe,Air Pipe
High Light:

200mm Rubber Expansion Joint

,

fabricated Rubber Expansion Joint

,

200mm rubber bellow expansion joint

Flange Forged Steel Rubber Bellows Expansion Flexible Joint For Pipe


Products:Rubber Expansion Joint

A Rubber Expansion Joint is flexible connector fabricated of natural or synthetic elastomers,fluoroplastics and fabrics and, if necessary, metallic reinforcements used to absorb movements in a piping system while containing pressure and a medium running through it.



Advantages:

Reduced fatigue factor
Given the inherent characteristics of natural and synthetic elastomers, they are not subject to fatigue breakdown or embrittlement and prevent any electrolytic action because of the steel-rubber interface of joints and mating flanges.



Extraordinary resistance to abrasion and corrosion
A wide variety of natural, synthetic and special purpose elastomers and fabrics are available to the industry. Materials are treated and combined to meet a wide range of practical pressure/temperature operating conditions, corrosive attack, abrasion and erosion.



Minimal face-to-face dimensions while absorbing large movements
With a minimal face to face length the Rubber Expansion Joints provide superior movement capability in axial compression, axial extension,and lateral deflection, as well as in the angular and torsional direction.



Low Spring Rates due to inherent flexibility of rubber
The inherent flexibility of rubber expansion joints permits almost unlimited flexing to recover from imposed movements, requiring relatively less force to move, thus preventing damage to motive equipment.



No gaskets required for installation
Elastomeric expansion joints are supplied with flanges of vulcanized rubber and fabric integrated with the tube, making the use of gaskets unnecessary in most of the applications. Check assembly instructions before installation.



Lightweight
Rubber Expansion joints are relatively light in weight, contributing to lower installation labour costs.



Reduced Heat Loss
Rubber expansion joints reduce heat loss, giving long maintenance-free service.



Strutcture:

Item Parts Material
1 Outer liner rubber EPDM
2 Key Frame Nylon cord fabric
3 Union Cast iron


Specification:

Part.No.

Diam.

(in.)

L(mm) Allowable Movement(mm) Operation Condition
.Compression Axial Elongation Transverse Deflection Angular Deflection Max.Pressure kg/cm²

Max.

Temperature

(℃)

Vacuum Rating mm Hg(in.)
RJ30-12 1/2 200 22 6 22 45° 10(150) 60(140) 405(16.20)
RJ30-34 3/4 200 22 6 22 45° 10(150) 60(140) 405(16.20)
RJ30-1 1 200 22 6 22 45° 10(150) 60(140) 405(16.20)
RJ30-114 1-1/4 200 22 6 22 45° 10(150) 50(122) 405(16.20)
RJ30-112 1-1/2 200 22 6 22 45° 10(150) 40(104) 405(16.20)
RJ30-2 2 200 22 6 22 45° 10(150) 30(86) 405(16.20)
RJ30-212 2-1//2 240 22 6 22 45° 10(150) 20(68) 405(16.20)
RJ30-3 3 240 22 6 22 45° 10(150) 20(68) 405(16.20)




Product Show:

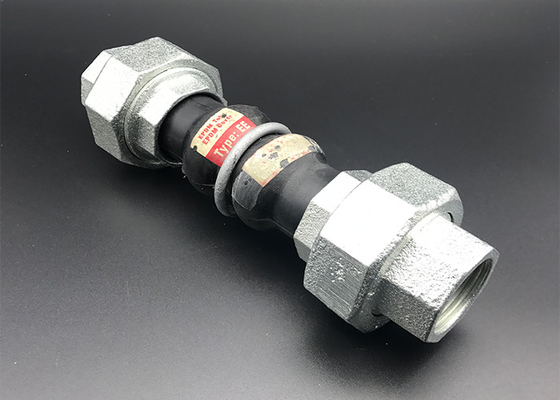

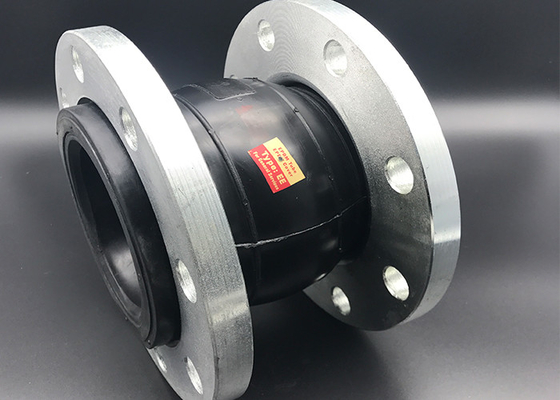

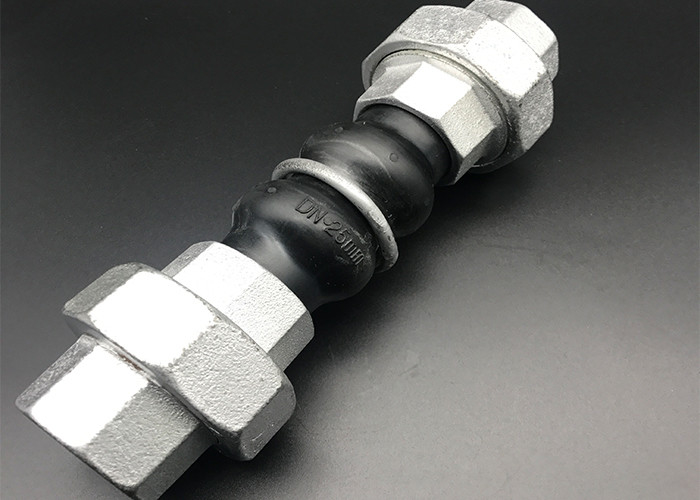

Fabricated Rubber Expansion Joint Bellow 200mm Forged Steel For Pipe 0  Fabricated Rubber Expansion Joint Bellow 200mm Forged Steel For Pipe 1


Package:


Fabricated Rubber Expansion Joint Bellow 200mm Forged Steel For Pipe 2  Fabricated Rubber Expansion Joint Bellow 200mm Forged Steel For Pipe 3



About KOKA:

Shanghai KoKa Industrial Co.,Ltd is a professional cable management systems (CMS) & Strut Framing systems and strut fitting systems solutions provider,manufacturer .

Based on over 15 years of engineering experience to the subways, airports, shopping malls, food, beverage, petrochemical ,and pharmaceutical industries, the KOKA production of stainless steel products has become a respected and specified brand to some of the world's most recognised organizations.

KOKA to provide personalized demand and global sourcing solutions for global customers,always adhere to the product quality first,Continuous development and optimization design, with user-friendly, simple installation to satisfied customer needs, and strive to reduce customer costs, to adapt to the global competition, With global customers to cope with the complex economic environment, to achieve common value growth of the target.



FAQ:

Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example:

1: what material(carbon steel/Q235/SS304/SS316)

2: what size do you need ?
3: what surface finished( zinc plate/HDG/powder coating/copper plated)?
Q4: Do you provide free samples?
A: Yes ,you can get the free samples
Q5: What is your payment terms?
A: 30% T/T deposit,balance will be against each copy of B/L;
Q6: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 20-25days.
