BSPP Single Sphere Expansion Joint Flanged Connector SS304 Corrosion Resistant

BSPP Single Sphere Expansion Joint Flanged Connector SS304 Corrosion Resistant
BSPP Single Sphere Expansion Joint Flanged Connector SS304 Corrosion Resistant BSPP Single Sphere Expansion Joint Flanged Connector SS304 Corrosion Resistant BSPP Single Sphere Expansion Joint Flanged Connector SS304 Corrosion Resistant

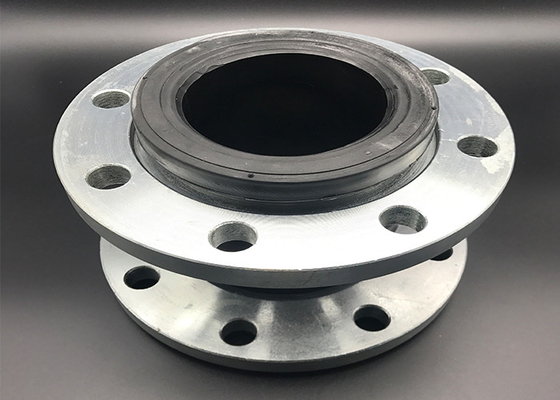

Large Image :  BSPP Single Sphere Expansion Joint Flanged Connector SS304 Corrosion Resistant

Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Certification: ISO9001 2015
Model Number: RJ10-25
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: sent email
Packaging Details: Pallet Packing,customized requirement
Delivery Time: contact us
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999 pcs/month

BSPP Single Sphere Expansion Joint Flanged Connector SS304 Corrosion Resistant

Description
Material: Rubber Service: OEM ODM
Sample: Available Certification: ISO9001-2015
Package: Carton Box Usage: Fire Pipe,Air Pipe
High Light:

BSPP single sphere expansion joint

,

SS304 single sphere expansion joint

,

SS304 flanged expansion joint

Corrosion Resistant Single Sphere SS304 Flange Connector Rubber Expansion Joint


Products:Rubber Expansion Joint

A Rubber Expansion Joint is flexible connector fabricated of natural or synthetic elastomers,fluoroplastics and fabrics and, if necessary, metallic reinforcements used to absorb movements in a piping system while containing pressure and a medium running through it.

Features:

1. Superb absorption vibration.
2. Effective for large eccentricity thermal and bending angle
3. Low-cost installation and operation.
4. BSPP,BSPT and NPT threaded unions available.

5. Vibration controller.



Advantages:

Reduced fatigue factor
Given the inherent characteristics of natural and synthetic elastomers, they are not subject to fatigue breakdown or embrittlement and prevent any electrolytic action because of the steel-rubber interface of joints and mating flanges.



Extraordinary resistance to abrasion and corrosion
A wide variety of natural, synthetic and special purpose elastomers and fabrics are available to the industry. Materials are treated and combined to meet a wide range of practical pressure/temperature operating conditions, corrosive attack, abrasion and erosion.



Minimal face-to-face dimensions while absorbing large movements
With a minimal face to face length the Rubber Expansion Joints provide superior movement capability in axial compression, axial extension,and lateral deflection, as well as in the angular and torsional direction.



Low Spring Rates due to inherent flexibility of rubber
The inherent flexibility of rubber expansion joints permits almost unlimited flexing to recover from imposed movements, requiring relatively less force to move, thus preventing damage to motive equipment.



Application:
— Power generating stations
— Oil & gas
— Desalination
— Cooling systems
— Pumps
— Chemical plants
— Heating, ventilating and air conditioning
— Shipbuilding
— Off-shore applications



Strutcture:

Item Parts Material
1 Outer liner rubber EPDM
2 Key frame Nylon cord fabric
3 Press wired Steel wire
4 Flange Steel


Specification:



Part No. Dia.(mm) L( mm) Axial Compress.(mm) Axial Extension (mm) Transverse Disp.(mm) Angular Disp.(°)

Max. Pressure

(kg/cm²)

Max. Temp.()
RJ10-25 25 95 8 4 8 15 16 60
RJ10-32 32 95 8 4 8 15 16 60
RJ10-40 40 95 8 5 8 15 16 60
RJ10-50 50 105 8 6 8 15 16 60
RJ10-65 65 115 12 6 10 15 16 60
RJ10-80 80 130 12 10 10 15 16 60
RJ10-100 100 150 18 10 12 15 16 60
RJ10-125 125 170 18 10 12 15 16 60
RJ10-150 150 180 18 14 12 15 16 60
RJ10-200 200 190 25 14 22 15 16 60
RJ10-250 250 230 25 14 22 15 16 60
RJ10-300 300 245 25 16 22 15 16 60
RJ10-350 350 265 25 16 22 15 16 60
RJ10-400 400 265 25 16 22 15 10 60
RJ10-450 450 265 25 16 22 15 10 60
RJ10-500 500 265 25 16 22 15 10 60
RJ10-600 600 265 25 16 22 15 10 60
RJ10-650 650 265 25 16 22 15 10 60
RJ10-700 700 265 25 16 22 15 10 60
RJ10-750 750 265 25 16 22 15 6 60
RJ10-800 800 265 25 16 22 15 6 60
RJ10-900 900 265 25 16 22 15 6 60
RJ10-1000 1000 265 25 16 22 15 6 60
RJ10-1200 1200 265 25 16 22 15 6 60


Product Show:

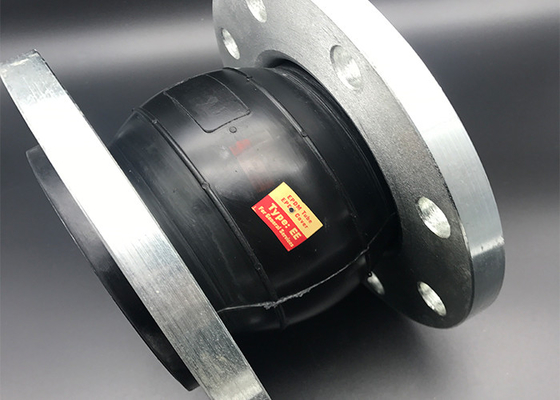

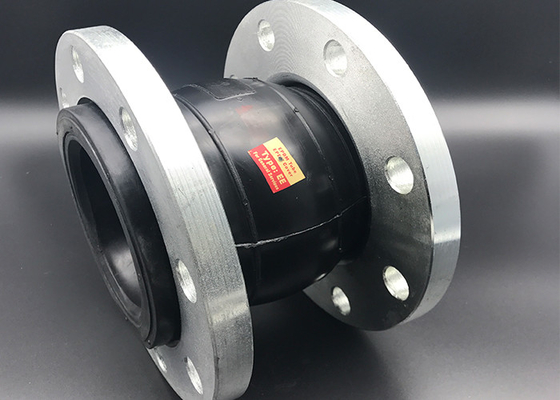

BSPP Single Sphere Expansion Joint Flanged Connector SS304 Corrosion Resistant 0  BSPP Single Sphere Expansion Joint Flanged Connector SS304 Corrosion Resistant 1


Package:


BSPP Single Sphere Expansion Joint Flanged Connector SS304 Corrosion Resistant 2  BSPP Single Sphere Expansion Joint Flanged Connector SS304 Corrosion Resistant 3
