Product Details:
|
Material: | Rubber | Service: | OEM ODM |
---|---|---|---|
Sample: | Available | Certification: | ISO9001-2015 |
Package: | Carton Box | Usage: | Fire Pipe,Air Pipe |
Highlight: | ISO9001 flexible Rubber Expansion Joint,fluoro plastics Rubber Expansion Joint,RJ30 stainless steel connector |
Rubber Expansion Joint Flexible Stainless Steel Connector
Products:Rubber Expansion Joint
A Rubber Expansion Joint is flexible connector fabricated of natural or synthetic elastomers,fluoroplastics and fabrics and, if necessary, metallic reinforcements used to absorb movements in a piping system while containing pressure and a medium running through it.
Advantages:
Reduced fatigue factor
Given the inherent characteristics of natural and synthetic elastomers, they are not subject to fatigue breakdown or embrittlement and prevent any electrolytic action because of the steel-rubber interface of joints and mating flanges.
Extraordinary resistance to abrasion and corrosion
A wide variety of natural, synthetic and special purpose elastomers and fabrics are available to the industry. Materials are treated and combined to meet a wide range of practical pressure/temperature operating conditions, corrosive attack, abrasion and erosion.
Strutcture:
Item | Parts | Material |
1 | Outer liner rubber | EPDM |
2 | Key Frame | Nylon cord fabric |
3 | Union | Cast iron |
Specification:
Part.No. |
Diam. (in.) |
L(mm) | Allowable Movement(mm) | Operation Condition | |||||
Axial Compression | Axial Elongation | Transverse Deflection | Angular Deflection | Max.Pressure kg/cm² |
Max. Temperature (℃) |
Vacuum Rating mm Hg(in.) | |||
RJ30-12 | 1/2 | 200 | 22 | 6 | 22 | 45° | 10(150) | 60(140) | 405(16.20) |
RJ30-34 | 3/4 | 200 | 22 | 6 | 22 | 45° | 10(150) | 60(140) | 405(16.20) |
RJ30-1 | 1 | 200 | 22 | 6 | 22 | 45° | 10(150) | 60(140) | 405(16.20) |
RJ30-114 | 1-1/4 | 200 | 22 | 6 | 22 | 45° | 10(150) | 50(122) | 405(16.20) |
RJ30-112 | 1-1/2 | 200 | 22 | 6 | 22 | 45° | 10(150) | 40(104) | 405(16.20) |
RJ30-2 | 2 | 200 | 22 | 6 | 22 | 45° | 10(150) | 30(86) | 405(16.20) |
RJ30-212 | 2-1//2 | 240 | 22 | 6 | 22 | 45° | 10(150) | 20(68) | 405(16.20) |
RJ30-3 | 3 | 240 | 22 | 6 | 22 | 45° | 10(150) | 20(68) | 405(16.20) |

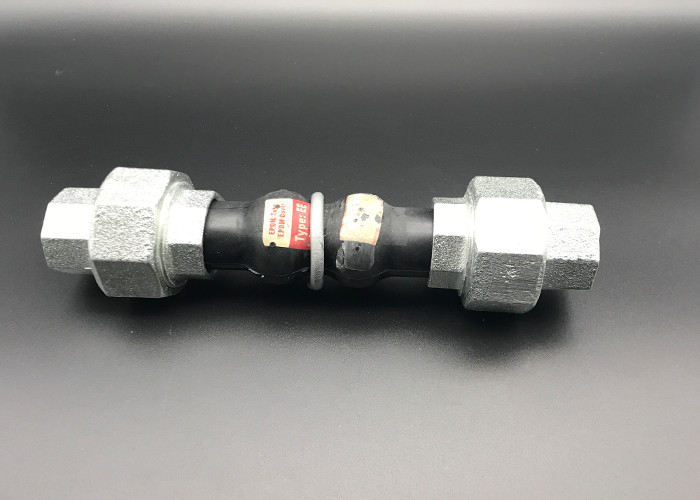

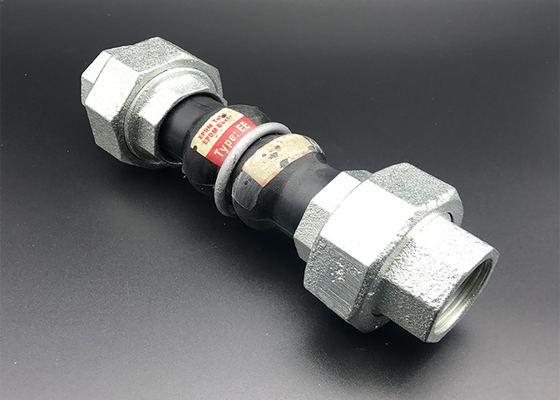

Product Show:
FAQ:
Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example:
1: what material(carbon steel/Q235/SS304/SS316)
2: what size do you need ?
3: what surface finished( zinc plate/HDG/powder coating/copper plated)?
