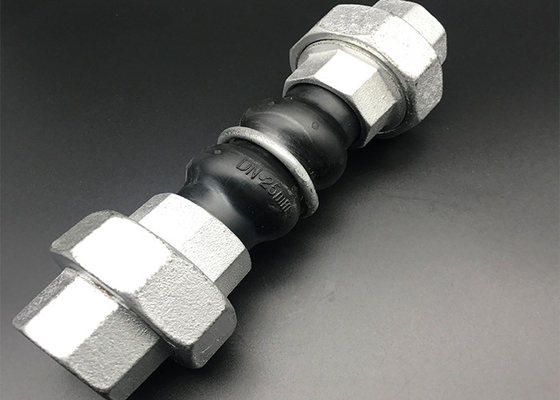

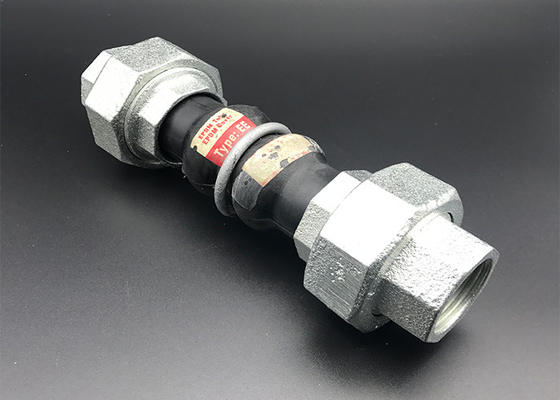

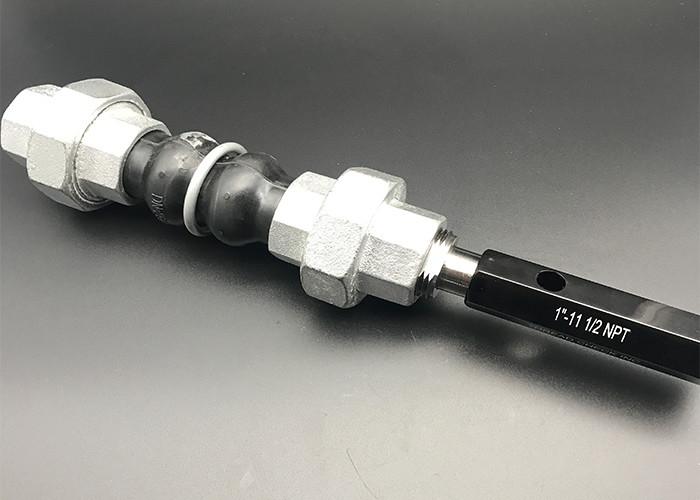

Customized Rubber Expansion Joint Bellows EPDM Flexible Connector

Customized Rubber Expansion Joint Bellows EPDM Flexible Connector
Customized Rubber Expansion Joint Bellows EPDM Flexible Connector Customized Rubber Expansion Joint Bellows EPDM Flexible Connector Customized Rubber Expansion Joint Bellows EPDM Flexible Connector

Large Image :  Customized Rubber Expansion Joint Bellows EPDM Flexible Connector

Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Certification: ISO9001 2015
Model Number: RJ30-12
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: sent email
Packaging Details: Pallet Packing,customized requirement
Delivery Time: contact us
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999 pcs/month

Customized Rubber Expansion Joint Bellows EPDM Flexible Connector

Description
Material: Rubber Service: OEM ODM
Sample: Available Certification: ISO9001-2015
Package: Carton Box Usage: Fire Pipe,Air Pipe
High Light:

EPDM Rubber Expansion Joint

,

Customized Rubber Expansion Joint

,

EPDM rubber expansion bellows

Customized EPDM Rubber Expansion Joint


Products:Rubber Expansion Joint

A Rubber Expansion Joint is flexible connector fabricated of natural or synthetic elastomers,fluoroplastics and fabrics and, if necessary, metallic reinforcements used to absorb movements in a piping system while containing pressure and a medium running through it.



Strutcture:

Item Parts Material
1 Outer liner rubber EPDM
2 Key Frame Nylon cord fabric
3 Union Cast iron


Specification:

Part.No.

Diam.

(in.)

L(mm) Allowable Movement(mm) Operation Condition
Axial Compression Axial Elongation Transverse Deflection Angular Deflection Max.Pressure kg/cm²

Max.

Temperature

(℃)

Vacuum Rating mm Hg(in.)
RJ30-12 1/2 200 22 6 22 45° 10(150) 60(140) 405(16.20)
RJ30-34 3/4 200 22 6 22 45° 10(150) 60(140) 405(16.20)
RJ30-1 1 200 22 6 22 45° 10(150) 60(140) 405(16.20)
RJ30-114 1-1/4 200 22 6 22 45° 10(150) 50(122) 405(16.20)
RJ30-112 1-1/2 200 22 6 22 45° 10(150) 40(104) 405(16.20)
RJ30-2 2 200 22 6 22 45° 10(150) 30(86) 405(16.20)
RJ30-212 2-1//2 240 22 6 22 45° 10(150) 20(68) 405(16.20)
RJ30-3 3 240 22 6 22 45° 10(150) 20(68) 405(16.20)




Product Show:
Customized Rubber Expansion Joint Bellows EPDM Flexible Connector 0  Customized Rubber Expansion Joint Bellows EPDM Flexible Connector 1


Package:


Customized Rubber Expansion Joint Bellows EPDM Flexible Connector 2  Customized Rubber Expansion Joint Bellows EPDM Flexible Connector 3



About KOKA:

Shanghai KoKa Industrial Co.,Ltd is a professional cable management systems (CMS) & Strut Framing systems and strut fitting systems solutions provider,manufacturer .

Based on over 15 years of engineering experience to the subways, airports, shopping malls, food, beverage, petrochemical ,and pharmaceutical industries, the KOKA production of stainless steel products has become a respected and specified brand to some of the world's most recognised organizations.

KOKA is the ideal solution for flexible support system available.

KOKA takes pride in building long term partnerships with clients that ensure a superior service and provider highest quality products.

KOKA products are known throughout the industry as being hygienic, high quality and to offer exceptional value.

KOKA offer an extensive range of products ex-stock and can therefore process your orders with a short lead time, with the majority of parts available on a next day delivery.

KOKA specialises in manufacturing the following products in SS304 , SS316 ,carbon steel.

KOKA to provide personalized demand and global sourcing solutions for global customers,always adhere to the product quality first,Continuous development and optimization design, with user-friendly, simple installation to satisfied customer needs, and strive to reduce customer costs, to adapt to the global competition, With global customers to cope with the complex economic environment, to achieve common value growth of the target.



FAQ:

Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example:

1: what material(carbon steel/Q235/SS304/SS316)

2: what size do you need ?
3: what surface finished( zinc plate/HDG/powder coating/copper plated)?
Q4: Do you provide free samples?
A: Yes ,you can get the free samples
Q5: What is your payment terms?
A: 30% T/T deposit,balance will be against each copy of B/L;
Q6: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 20-25days.
