Home ProductsStainless Steel Flexible Joint

ISO9001 Corrugated Braided Stainless Steel Flexible Joint Bellows SS316 Matal

I'm Online Chat Now

ISO9001 Corrugated Braided Stainless Steel Flexible Joint Bellows SS316 Matal

ISO9001 Corrugated Braided Stainless Steel Flexible Joint Bellows SS316 Matal
ISO9001 Corrugated Braided Stainless Steel Flexible Joint Bellows SS316 Matal ISO9001 Corrugated Braided Stainless Steel Flexible Joint Bellows SS316 Matal ISO9001 Corrugated Braided Stainless Steel Flexible Joint Bellows SS316 Matal

Large Image :  ISO9001 Corrugated Braided Stainless Steel Flexible Joint Bellows SS316 Matal

Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Certification: ISO9001 2015
Model Number: SSFJ508-12
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: sent email
Packaging Details: Pallet Packing,customized requirement
Delivery Time: contact us
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999 pcs/month

ISO9001 Corrugated Braided Stainless Steel Flexible Joint Bellows SS316 Matal

Description
Material: Stainless Steel Service: OEM ODM
Sample: Available Certification: ISO9001-2015
Package: Carton Box Usage: Fire Pipe,Air Pipe
High Light:

SS316 Stainless Steel Flexible Joint

,

ISO9001 Corrugated Stainless Steel Flexible Joint

,

304 ss flexible bellows

Bellow Corrugated Braided Metal Stainless Steel Flexible Joint


Products:Stainless Steel Flexible Joint



Application:

1.Using equipment point to link with tube route
2.Using small-scale pump to link with tube route.
3.Using industrial small-bore shockproof joint.



Structure:

Item Part Material Remark
1 Bellows SUS304 SUS316/321
2 Braids SUS304
3 Thread   P.T or NPT
4 Seal Ring SUS304 SUS316



Specification:

Part No.

Nominal

Bore

Total Length

Bellows

O.D.

Max

Offset

Working
Pressure
inch mm inch mm mm kg/cm²
SSFJ508-12 1/2 250 10 18.7 20 16
SSFJ508-34 3/4 250 10 25.3 20 16
SSFJ508-1 1 250 10 32.6 20 16
SSFJ508-114 1-1/4 250 10 41.2 18 16
SSFJ508-112 1-1/2 300 12 47.7 16 16
SSFJ508-2 2 300 12 62 15 16
SSFJ508-212 2-1/2 350 14 82 14 16
SSFJ508-3 3 350 14 97 12 16

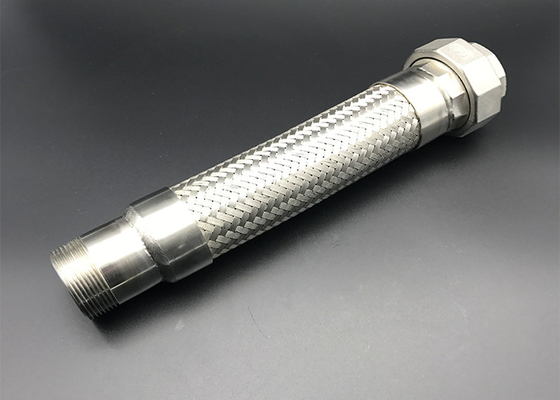

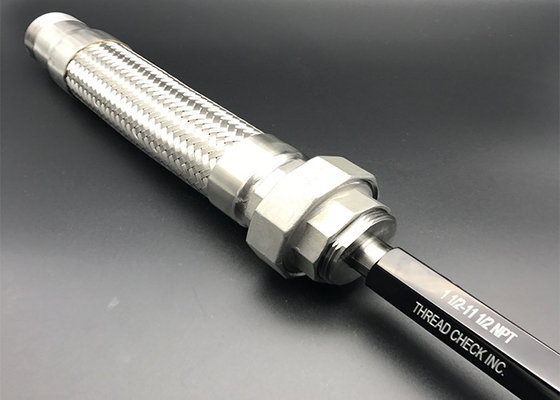

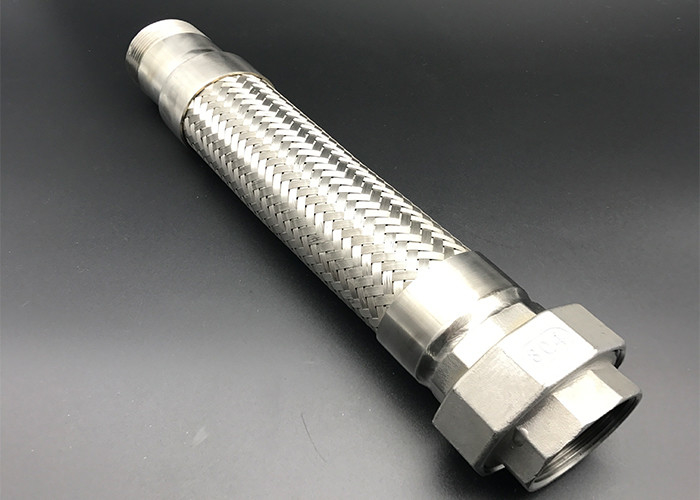

Product Show:
ISO9001 Corrugated Braided Stainless Steel Flexible Joint Bellows SS316 Matal 0  ISO9001 Corrugated Braided Stainless Steel Flexible Joint Bellows SS316 Matal 1


Package:


ISO9001 Corrugated Braided Stainless Steel Flexible Joint Bellows SS316 Matal 2  ISO9001 Corrugated Braided Stainless Steel Flexible Joint Bellows SS316 Matal 3



About KOKA:

Shanghai KoKa Industrial Co.,Ltd is a professional cable management systems (CMS) & Strut Framing systems and strut fitting systems solutions provider,manufacturer .

Based on over 15 years of engineering experience to the subways, airports, shopping malls, food, beverage, petrochemical ,and pharmaceutical industries, the KOKA production of stainless steel products has become a respected and specified brand to some of the world's most recognised organizations.

KOKA is the ideal solution for flexible support system available.

KOKA takes pride in building long term partnerships with clients that ensure a superior service and provider highest quality products.

KOKA products are known throughout the industry as being hygienic, high quality and to offer exceptional value.

KOKA offer an extensive range of products ex-stock and can therefore process your orders with a short lead time, with the majority of parts available on a next day delivery.

KOKA specialises in manufacturing the following products in SS304 , SS316 ,carbon steel.

KOKA to provide personalized demand and global sourcing solutions for global customers,always adhere to the product quality first,Continuous development and optimization design, with user-friendly, simple installation to satisfied customer needs, and strive to reduce customer costs, to adapt to the global competition, With global customers to cope with the complex economic environment, to achieve common value growth of the target.



FAQ:

Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example:

1: what material(carbon steel/Q235/SS304/SS316)

2: what size do you need ?
3: what surface finished( zinc plate/HDG/powder coating/copper plated)?
Q4: Do you provide free samples?
A: Yes ,you can get the free samples
Q5: What is your payment terms?
A: 30% T/T deposit,balance will be against each copy of B/L;
Q6: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 20-25days.
