Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Certification: ISO9001 2015
Model Number: SSFJ508-12
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: sent email
Packaging Details: Pallet Packing,customized requirement
Delivery Time: contact us
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999 pcs/month

100pcs Vacuum Flexible Hose Joint Bellow Connector Pipe Stainless Steel Metal

Description
Material: Stainless Steel Service: OEM ODM
Sample: Available Certification: ISO9001-2015
Package: Carton Box Usage: Fire Pipe,Air Pipe
High Light:

100pcs flexible hose joint

,

ss321 flexible hose joint

,

ss321 flexible pipe joint connector

Flexible Vacuum Hose And Stainless Steel Metal Bellow Joint


Products:Stainless Steel Flexible Joint

Expansion joints are used widely in building services industry and other general industrial uses. Expansion joints are designed to accommodate vibration and thermal expansion to reduce transmission of noise on a vide range of systems. These include steam, condense, hot water, and heating and air conditioning systems. Other applications include power generation plant and offshore (gas and oil rigs).
SUS 304 stainless steel is the material most commonly used in the manufacture of bellows. This is a high quality material suitable for most service conditions. However, a choice of other materials-316L, 321-is available for special applications. Hardware attachments such as flanges, weld ends. liners and covers are generally made from materials compatible with the piping or vessel adjacent to the expansion joint.



Structure:

Item Part Material Remark
1 Bellows SUS304 SUS316/321
2 Braids SUS304
3 Thread   P.T or NPT
4 Seal Ring SUS304 SUS316



Specification:

Part No.

Nominal

Bore

Total Length

Bellows

O.D.

Max

Offset

Working
Pressure
inch mm inch mm mm kg/cm²
SSFJ508-12 1/2 250 10 18.7 20 16
SSFJ508-34 3/4 250 10 25.3 20 16
SSFJ508-1 1 250 10 32.6 20 16
SSFJ508-114 1-1/4 250 10 41.2 18 16
SSFJ508-112 1-1/2 300 12 47.7 16 16
SSFJ508-2 2 300 12 62 15 16
SSFJ508-212 2-1/2 350 14 82 14 16
SSFJ508-3 3 350 14 97 12 16

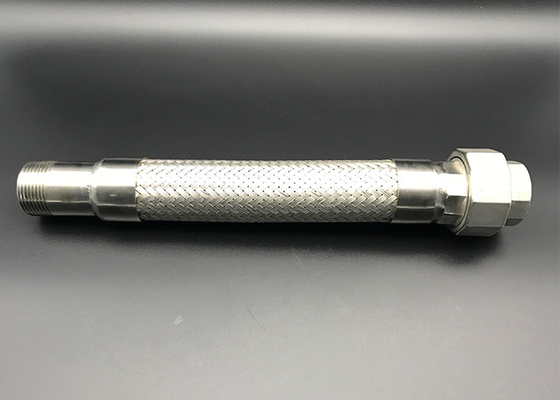

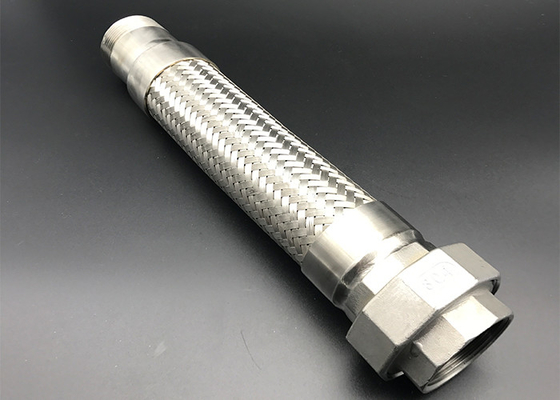

Product Show:
100pcs Vacuum Flexible Hose Joint Bellow Connector Pipe Stainless Steel Metal 0  100pcs Vacuum Flexible Hose Joint Bellow Connector Pipe Stainless Steel Metal 1

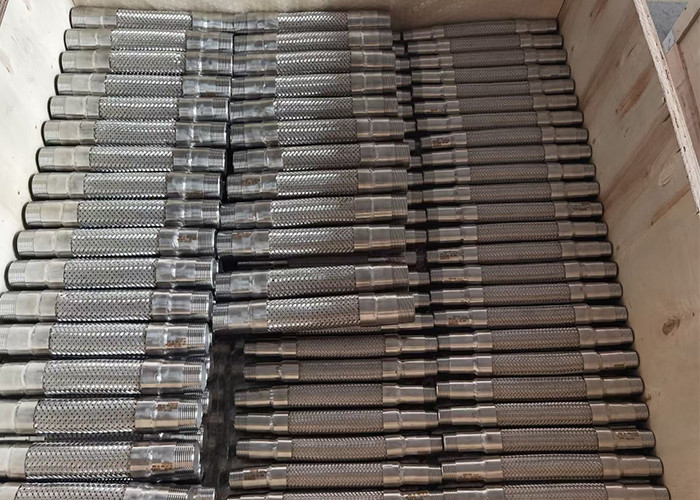

Package:


100pcs Vacuum Flexible Hose Joint Bellow Connector Pipe Stainless Steel Metal 2  100pcs Vacuum Flexible Hose Joint Bellow Connector Pipe Stainless Steel Metal 3
