SUS316 Stainless Steel Flexible Joint Pipe 1/2 Braided Hoses

SUS316 Stainless Steel Flexible Joint Pipe 1/2 Braided Hoses
SUS316 Stainless Steel Flexible Joint Pipe 1/2 Braided Hoses SUS316 Stainless Steel Flexible Joint Pipe 1/2 Braided Hoses SUS316 Stainless Steel Flexible Joint Pipe 1/2 Braided Hoses

Large Image :  SUS316 Stainless Steel Flexible Joint Pipe 1/2 Braided Hoses

Product Details:
Place of Origin: Shanghai
Brand Name: KOKA
Certification: ISO9001 2015
Model Number: SSFJ508-12
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: sent email
Packaging Details: Pallet Packing,customized requirement
Delivery Time: contact us
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999 pcs/month

SUS316 Stainless Steel Flexible Joint Pipe 1/2 Braided Hoses

Description
Material: Stainless Steel Service: OEM ODM
Sample: Available Certification: ISO9001-2015
Package: Carton Box Usage: Fire Pipe,Air Pipe
High Light:

SUS316 Stainless Steel Flexible Joint

,

1/2 Braided Stainless Steel Flexible Joint

,

SUS316 flexible pipe joint

Flexible Stainless Steel Hoses Expansion Joint


Products:Stainless Steel Flexible Joint

Thermal growth, overloading, metal fatigue, noise, excessive installation time and early maintenance problems can be significantly reduced or avoided with flexible connectors and expansion joints.

Stainless steel flexible joints series SSFJ508 are specifically designed for piping applications requiring limited absorbtion of axial and lateral movements.In order to increase the pressure resistance of the high temperature flexible hose, it is steel braided.
Once the metal hose is welded with the stainless steel braid, it can absorb mild vibrations and movements, and also act as a protective covering to the relatively thin walled hose.



Structure:

Item Part Material Remark
1 Bellows SUS304 SUS316/321
2 Braids SUS304
3 Thread   P.T or NPT
4 Seal Ring SUS304 SUS316



Specification:

Part No.

Nominal

Bore

Total Length

Bellows

O.D.

Max

Offset

Working
Pressure
inch mm inch mm mm kg/cm²
SSFJ508-12 1/2 250 10 18.7 20 16
SSFJ508-34 3/4 250 10 25.3 20 16
SSFJ508-1 1 250 10 32.6 20 16
SSFJ508-114 1-1/4 250 10 41.2 18 16
SSFJ508-112 1-1/2 300 12 47.7 16 16
SSFJ508-2 2 300 12 62 15 16
SSFJ508-212 2-1/2 350 14 82 14 16
SSFJ508-3 3 350 14 97 12 16

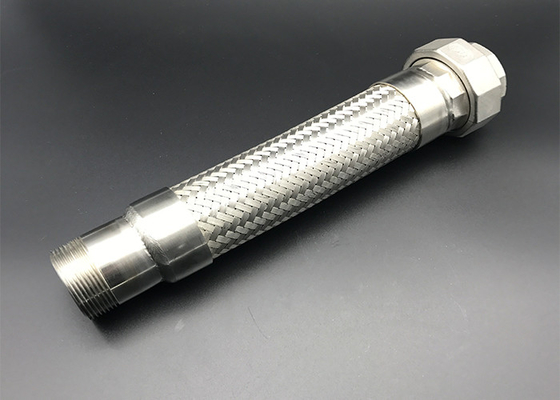

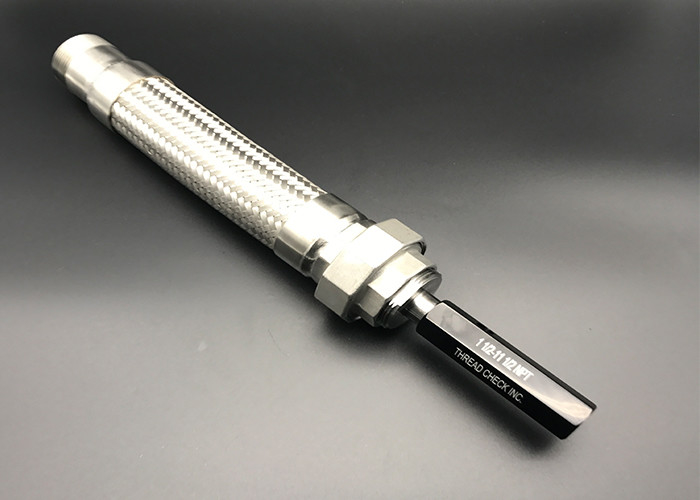

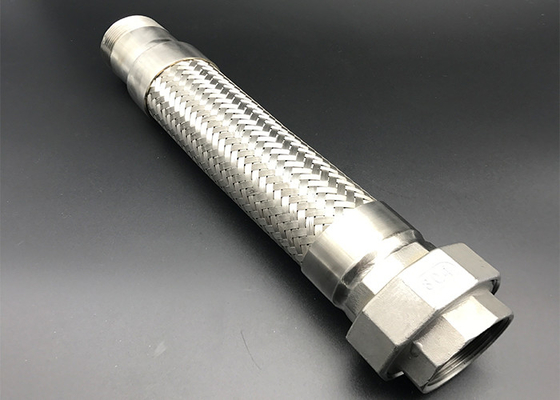

Product Show:
SUS316 Stainless Steel Flexible Joint Pipe 1/2 Braided Hoses 0  SUS316 Stainless Steel Flexible Joint Pipe 1/2 Braided Hoses 1


Package:


SUS316 Stainless Steel Flexible Joint Pipe 1/2 Braided Hoses 2  SUS316 Stainless Steel Flexible Joint Pipe 1/2 Braided Hoses 3
